Type X
Dynamic Range Expander
Vintage Audio Enhancer

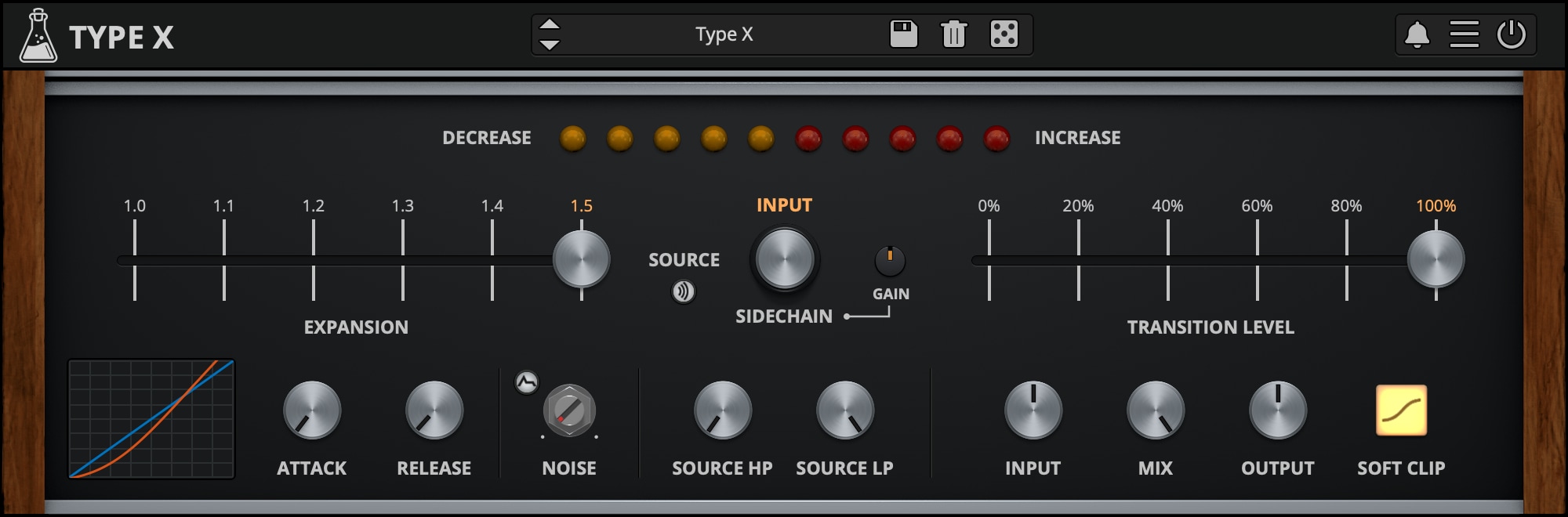

Type X is a faithful emulation of the dbx® Model 1BX, a compact dynamic range expander from the golden age of consumer hi-fi audio. Built to expand dynamics and add expressive contrast, Type X adds life, punch, and presence to any track by dynamically increasing the difference between loud and soft passages.
While the original was designed to enhance playback from compressed sources like tape or broadcast, Type X introduces modern flexibility. It features a sidechain input with high-pass and low-pass filters, allowing precise control over what drives the expansion. Additional parameters for internal attack and release times give you deeper shaping capabilities beyond the fixed response of the original hardware.
Type X is available for macOS, Windows, and Linux (VST2, VST3, AU, AAX, CLAP).

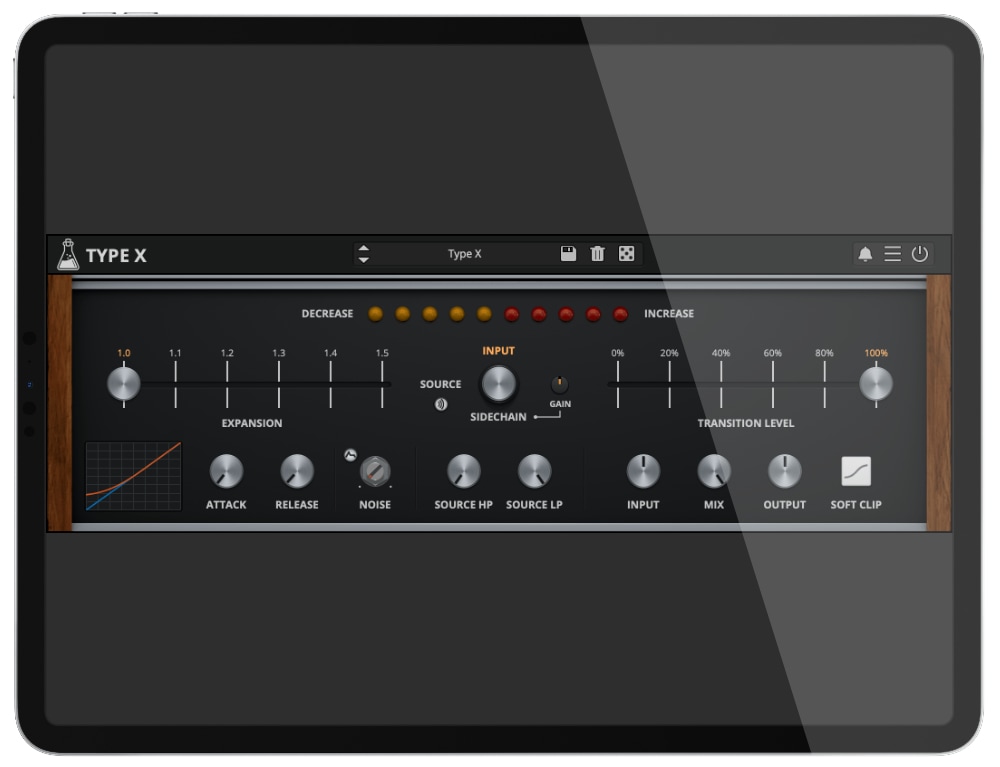

It’s also available on the App Store for iOS and iPadOS (AUv3 and Standalone).

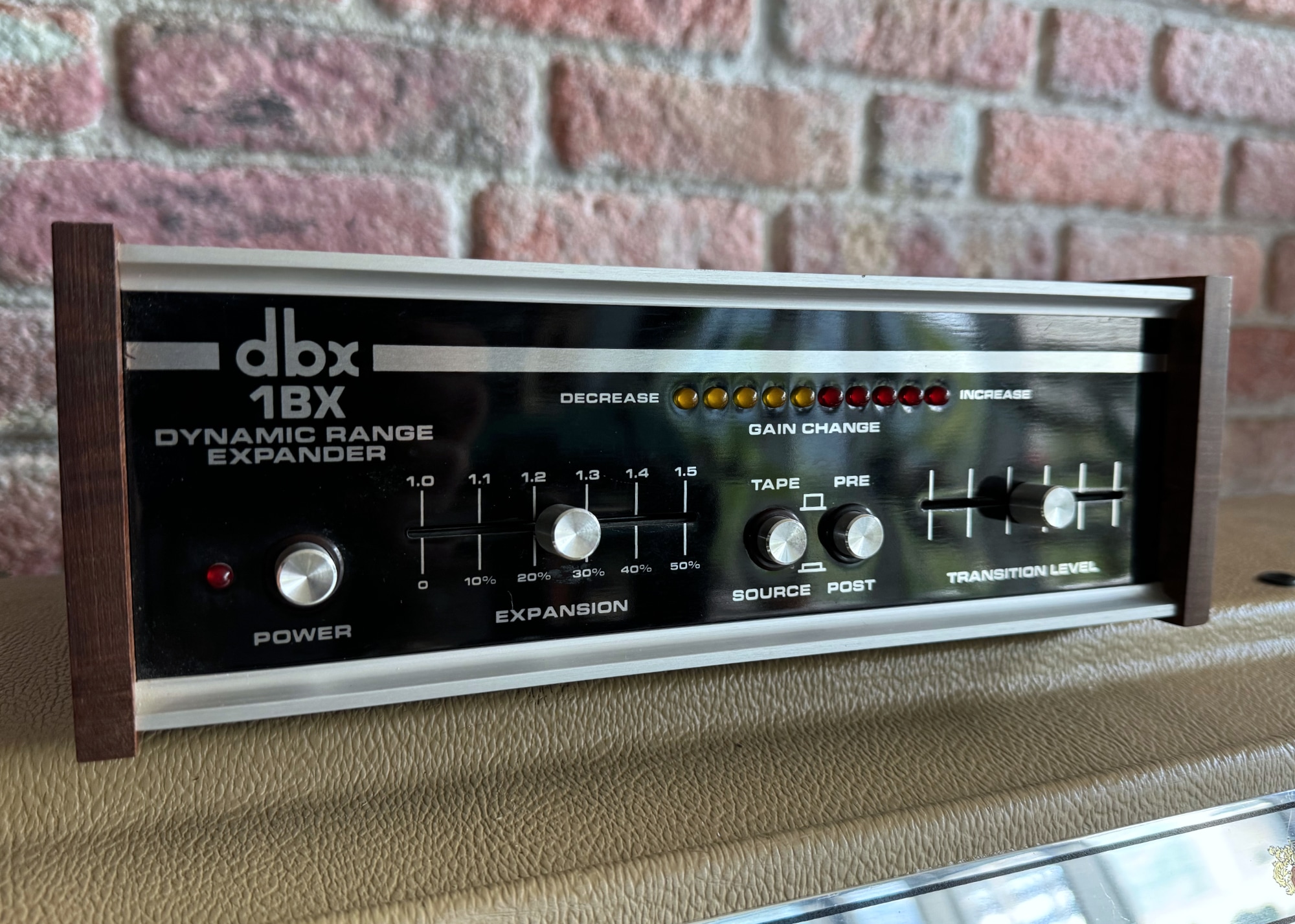

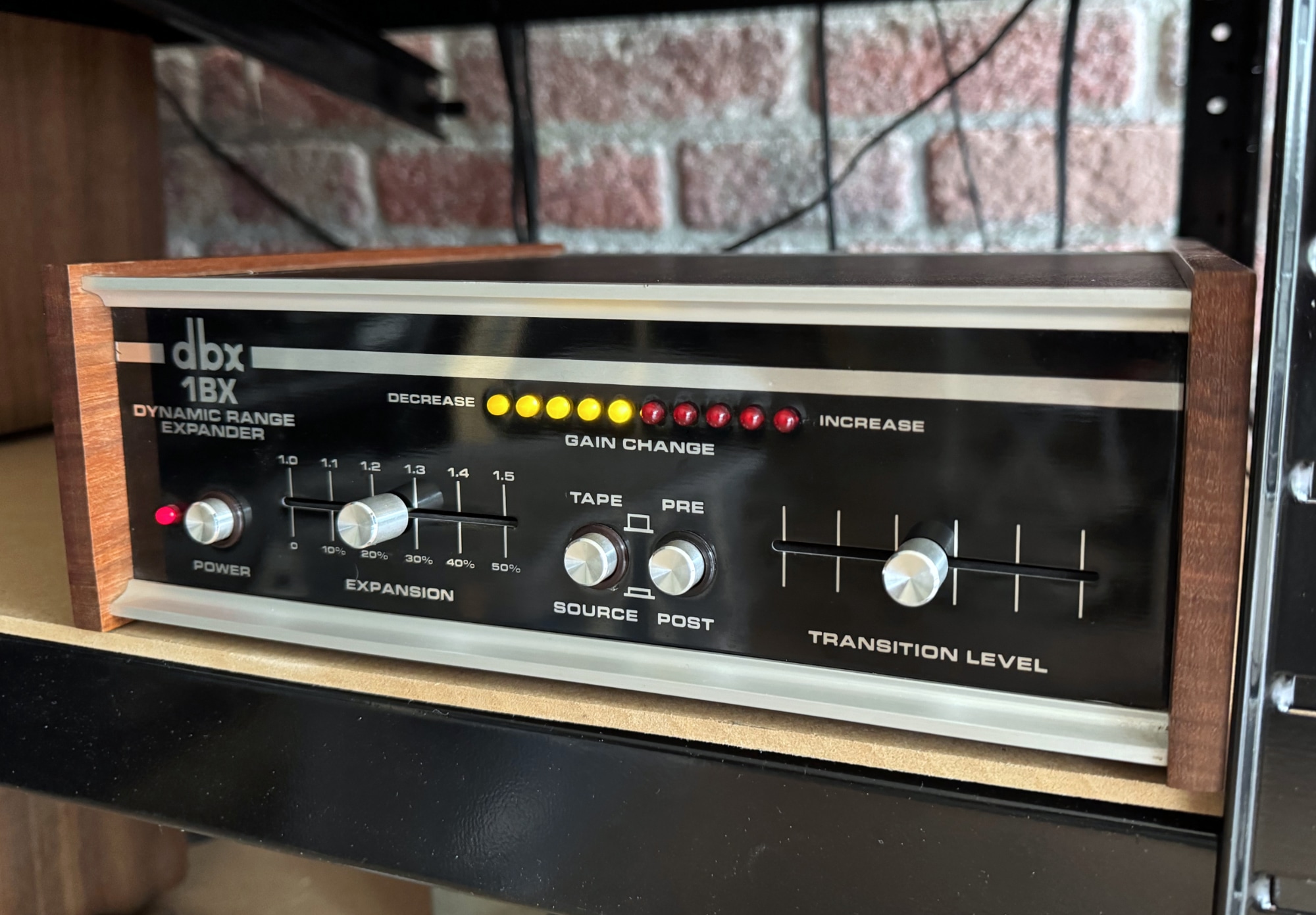

A Brief History of the dbx® 1BX
Introduced in 1978, the dbx® 1BX was designed to enhance the listening experience by increasing the dynamic range of audio playback. As a single-band expander, it aimed to make quiet sounds quieter and loud sounds louder, thereby restoring the natural dynamics often lost in recording and broadcasting processes.
With an expansion ratio adjustable up to 1.5:1, the 1BX could deliver up to a 50% improvement in stereo dynamic range across a wide frequency spectrum. This capability made it a valuable tool for audiophiles and professionals seeking to revitalize compressed audio sources like vinyl records, cassette tapes, and FM broadcasts.
The success of the 1BX led to subsequent models, including the 1BX Series II and 1BX Series III, which introduced additional features and refinements. These units remained popular among enthusiasts for their ability to breathe new life into vintage audio recordings.
How does it work?
Type X works by applying wideband dynamic expansion, a process that increases the difference between quiet and loud parts of a signal. Instead of compressing like a traditional compressor, it does the opposite: quiet sounds get quieter, and loud sounds stay loud (or even get slightly louder), making the music feel more dynamic and expressive.
Internally, Type X analyzes the input signal using a true RMS detector, just like the original hardware, to track its average energy over time. When the signal crosses a user-defined transition level, the expander applies gain changes based on the expansion ratio, with adjustable attack and release to shape how quickly it responds.

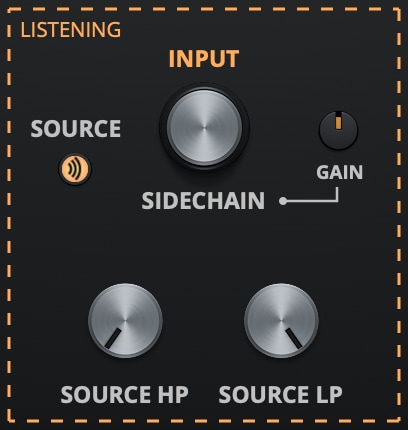

Type X also includes a filtered sidechain that lets you shape exactly what content triggers the expansion.
You can choose between the main input and an external sidechain signal as the source, then sculpt it with dedicated high-pass and low-pass filters. Use the Gain control to adjust the sidechain level independently, ensuring consistent triggering even with quiet or loud material.
You can also enable source listening to hear exactly what audio is being used by the expander.

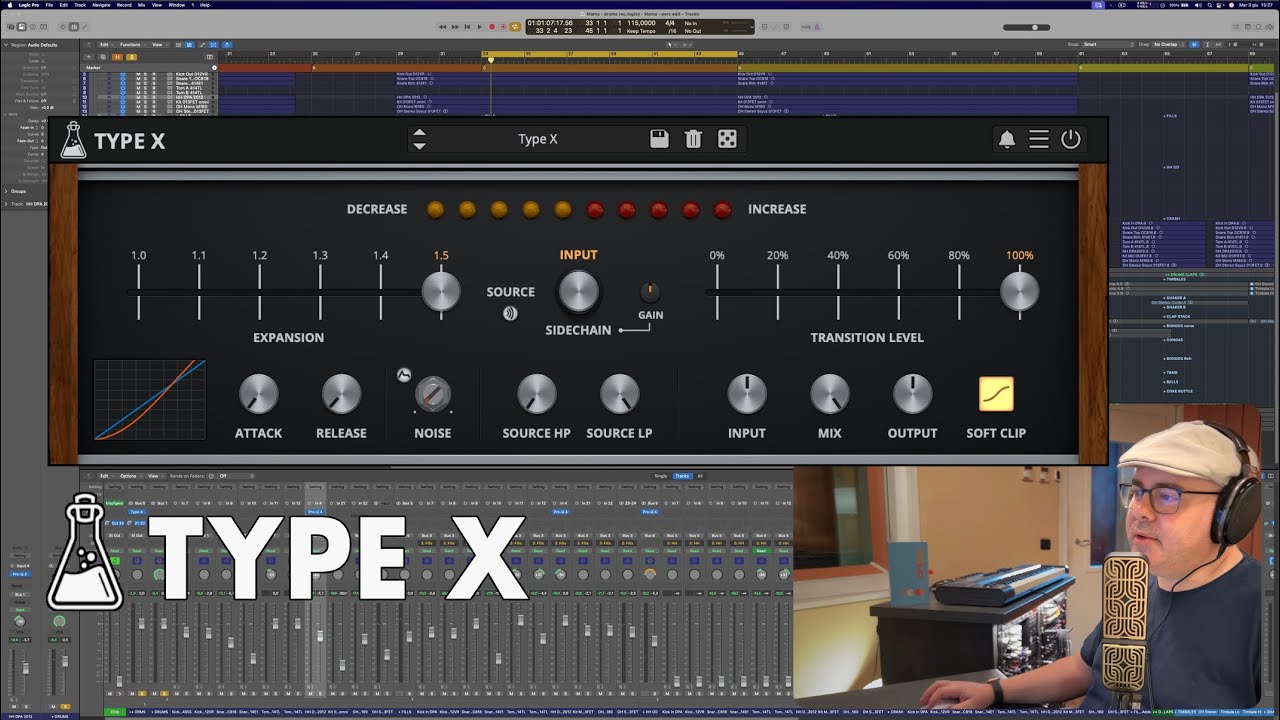

Type X Demo
Try Type X for free with some limitations: silence for 3 seconds every 45 seconds, saving disabled.
If you like it, you can purchase a license and then authorize the demo version.
macOS
Requires macOS 10.13 or higher
AU, VST2, VST3, AAX, CLAP (64bit only)
Windows
Requires Windows 7 or higher
VST2, VST3, AAX, CLAP (64bit only)
Linux
Requires Ubuntu 20.04 or newer
VST2, VST3, CLAP (64bit only)
Specifications
- Dynamic Range Expander
- Single Band with Attack and Release
- Sidechain with Filter
- Oversample up to 16x
- Brightness and Contrast Controls
- Resizable Window
- Preset system with randomizer
System Requirements
Windows 7 – 11
2GHz CPU, 4 GB RAM
VST2, VST3, AAX, CLAP (64-bit)
macOS 10.13 – macOS 15
2GHz CPU, 4 GB RAM
VST2, VST3, AU, AAX, CLAP (64-bit)
Universal 2 Binary
Ubuntu 20.04 LTS
2GHz CPU, 4 GB RAM
VST2, VST3, CLAP (64-bit)
Copy Protection
To activate your plugin you can choose between Online and Offline authorization.
Create an account, log in through the plugin to activate, or download your license file for offline activation.
Activation
1 license up to 3 computers
No iLok
We don’t like dongles
No Internet
No connection required to activate
Changelog
2025/06/12: v1.0
- Release!
Type X is not affiliated with, sponsored, nor endorsed by dbx®.
All manufacturer and product names on this page are trademarks of their respective owners, unaffiliated with AudioThing. These trademarks are used only to identify the products studied during development. Names of equipment, inventors, and manufacturers are included for illustrative and educational purposes only, and do not imply any affiliation or endorsement.
