B00GA
Micro-Sound Rhythm and Tone Generator
From Minimal Rhythms to Heavy Drones
B00GA is a studio and live instrument designed to create experimental rhythms and tonal textures. Inspired by a rare piece of lab equipment, the Hewlett-Packard Word Generator 8006A, it offers an excitingly different way to sequence clicks, pulses, and noise.
Use it to create tight grooves, off-kilter beats, and forever shifting micro-sound patterns. Speed them up into rich drones and tonal structures. It comes with a suite of five vintage-flavored effects that allow for unique radiophonic effects. From brain-dance to the dance floor to advanced sound design, let’s B00GA!
B00GA is available for macOS, Windows, and Linux (VST2, VST3, AU, AAX, CLAP).
It’s also available on the App Store for iOS and iPadOS (AUv3 and Standalone).
The Word Generator
The starting point for B00GA was a rare piece of US-American test equipment, the binary word generator. “Word generators are used to produce the complex waveforms necessary for logic circuit testing, telecommunications system development, and for interface simulation.” (read more). When Hainbach found one for a few bucks on eBay, he quickly realized the musical potential: without any modification, it became the rhythmic core of his test equipment music. Word generators are also in use at the famed Willem Twee studio and are generally much appreciated for their precise timing and their ability to morph from rhythm to continuous tone to even the radio frequency spectrum. They are also notorious for overheating, which means few of the most musically useful units survive. Their main use in test equipment music is in “pinging”, causing other devices, like filters or lock-in amplifiers, to resonate and play rhythmic patterns.
The Plugin
Originally, we stayed very faithful to the Word Generator design – a set of pulses created by two rows of sequencing. Like the original, we had intended it to ping other plugins, like our test equipment channel strip Dials or resonator Gong Amp. But we quickly discovered that even tiny sounds contain a lot of character. Hence, we expanded the scope of B00GA to become an instrument in its own right, with pinging being a secondary (though still beautifully effective) function.
Functions Overview
B00GA combines a dual sequencer that is variable in speed from 0.1 Hz to 5 kHz with a crossfading sample player and a noise synthesizer. You can select samples from the factory banks or add your own sounds. By crossfading between them, you get new combinations, and randomizing will change the sound per step, so no pattern repetition sounds the same. The noise section allows you to generate, filter, and shape noise bursts freely. It is useful to create percussion and crackling textures. The effect section includes a new passive bandpass filter designed especially for this instrument, as well as tape echo, spring reverb, and phaser.
Effects
You might know our effect section from previous plugins, but for B00GA we added something new: a model of well known passive octave bandpass filter. This is especially useful for beautiful radiophonic sound effects.
- Passive Bandpass Filter, 10 bands of octave filtering. Modeled to sound like the original duck-green passive filter, not to be scientifically exact. The mix knob allows mixing of the dry and filtered signal.
- Spring Reverb, classic spring reverb with a warm, vintage character. Perfect for adding depth, space, and retro charm to any sound.
- Phaser, a rich, swirling phaser effect inspired by vintage analog units.
- Tape Echo, an authentic tape delay based on our Space Echo emulation Outer Space.
You can rearrange the effects in any order using drag and drop.
The Banks
For the banks, we started by sampling the original unit. Since the variation is pretty limited there, we went through both of our collections of vintage pulse generators, shaping and recording pulses of all kinds. It was astonishing how different the various units sound – from the heavy thwak of the tiny “Berlin” generator that is part of the Hainlab at SMEM, to the pristine analog computing shapes of the PAR 175 Universal Programmer. After exhausting these classic sources, we made use of digital generators. These provide precise shaping, which results in “I am being cut up by robots” sounds. From there, it was time to experiment, and we recorded and cut up tones from drum machines, analog synths, acoustic instruments, and field recordings. Even micro sounds contain an inkling of what the original was, and when you pitch them down, you get odd and beautiful ghosts. For the release, we had to stop ourselves at some point. But, same as with Noises, expect a continuously growing bank of micro sounds. It is just too much fun to create sounds for B00GA!
Creating your own Banks

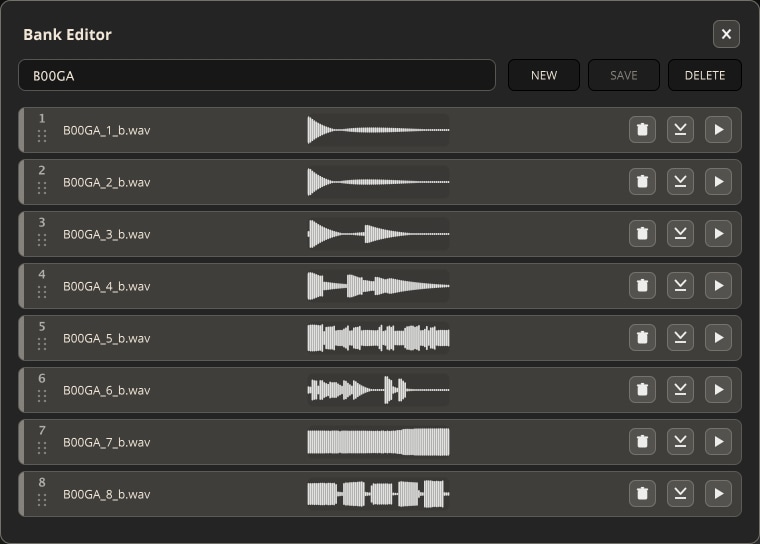

You can easily create and edit your own banks in B00GA using the Bank Editor. Click the edit icon next to the bank list to open it.
Click NEW to create a bank, enter a name, then drag and drop your samples into the eight slots or use each slot’s load button. You can preview, replace or clear samples, and drag the rows to change their order. Click SAVE to save your changes and update the bank list automatically.
B00GA supports WAV, AIFF, FLAC and OGG files. Only the beginning of each sample is used as a Pulse source.
You can also add banks manually. Open the ☰ menu in the top-right corner and choose Global Settings → Banks Path → Open Banks Folder. Create a folder for each bank and add your samples, then click the reload button next to the bank list. New folders load up to eight samples in alphabetical order; you can then arrange them in the Bank Editor.
Hainbach
Based out of Berlin, Germany, electro-acoustic composer and “that guy with the sweaters” Hainbach creates experimental music that is both visceral and whimsical. Using esoteric synthesizers, test equipment and magnetic tape he creates one hell of a trip in his improvised live sets. He shares techniques on experimental music on his YouTube channel, which has attracted a regular audience of over 100000 subscribers. His music has been released on Seil Records, Opal Tapes, SA Recordings and misc.works.

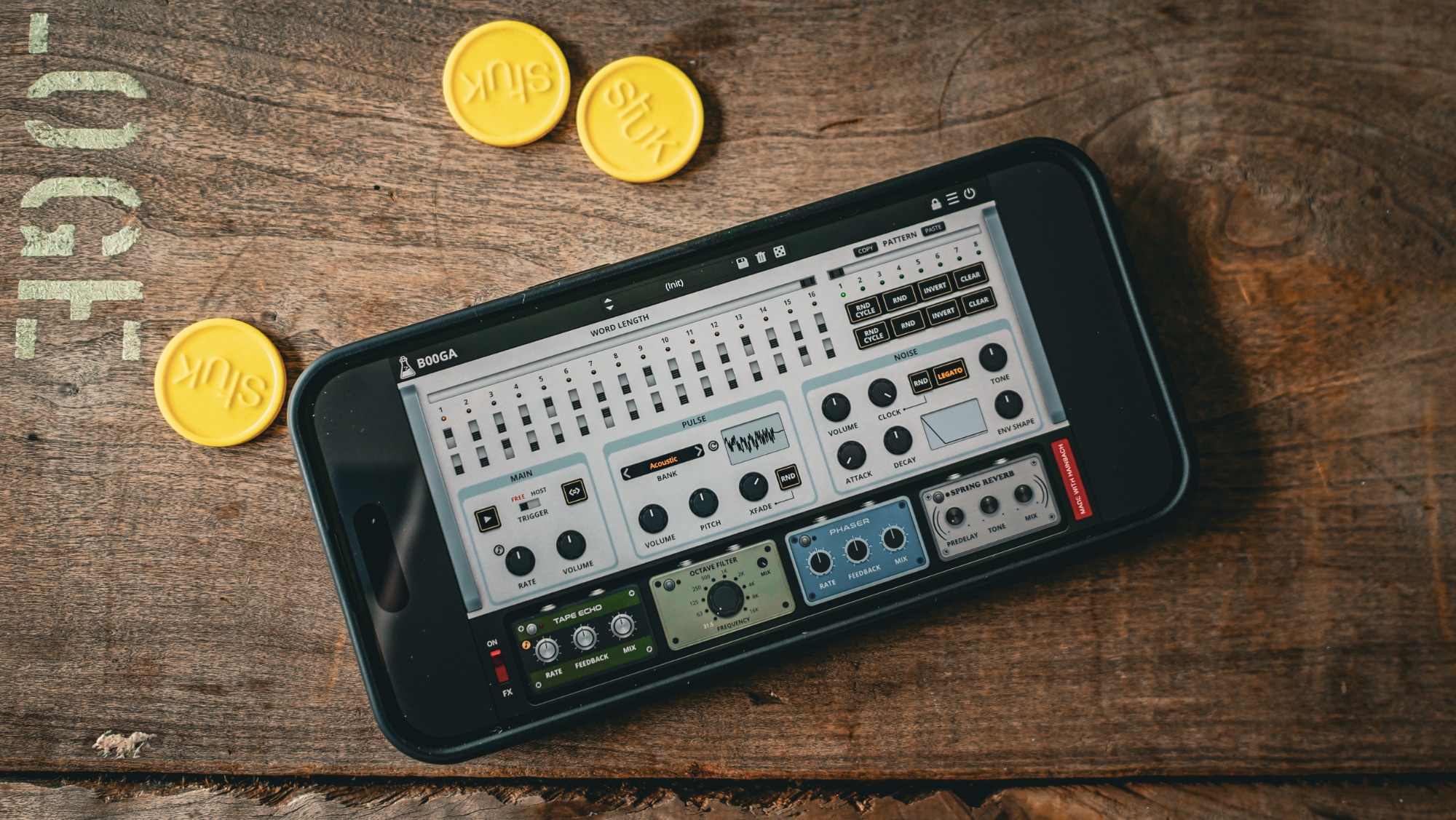

Also available on iOS
B00GA is available for iPhone and iPad on the App Store, as a AUv3 plugin and Standalone (IAA).
Download on theApp Store
B00GA Demo
Try B00GA for free with some limitations: silence for 3 seconds every 45 seconds, saving disabled.
If you like it, you can purchase a license and then authorize the demo version.
macOS
Requires macOS 10.13 or higher
AU, VST2, VST3, AAX, CLAP (64bit only)
Download DemoWindows
Requires Windows 7 or higher
VST2, VST3, AAX, CLAP (64bit only)
Download DemoLinux
Requires Ubuntu 20.04 or newer
VST2, VST3, CLAP (64bit only)
Download DemoSpecifications
- 2 Sequence Lines (Pulse and Noise)
- 28 Pulse Banks
- 8 Patterns per preset
- Several step randomization options
- 4 Effects (echo, spring reverb, octave filter, phaser)
- Resizable Window
- Preset system with randomizer
- Brightness and Contrast Controls
System Requirements
Windows
Windows 7 – 11
2GHz CPU, 4 GB RAM
VST2, VST3, AAX, CLAP (64-bit)
macOS
macOS 10.13 – macOS 26
2GHz CPU, 4 GB RAM
VST2, VST3, AU, AAX, CLAP (64-bit)
Universal 2 Binary
Linux
Ubuntu 20.04 LTS
2GHz CPU, 4 GB RAM
VST2, VST3, CLAP (64-bit)
Changelog
v1.1 2026/10/12
- Added: Bank Editor
- Added: 2 New banks “PhotonBubbles” and “TERZ”
- Added: 7 new presets
- Added: MIDI Thru mode
- Improved: MIDI Learn
- Fixed: Double Pulse trigger when looping a region
- Fixed: Octave Frequency not automatable
- Fixed: Tape Echo Sync not working
v1.0.1 2025/11/25
- Added: New Artist Presets by LONDON RAIN
- Fixed: Bypass button not working
- Fixed: Custom Bank Path not saved correctly
- Fixed: FX Chain not recalling correctly
v1.0 2025/11/17
- Release!
Copy Protection
To activate your plugin you can choose between Online and Offline authorization.
Create an account, log in through the plugin to activate, or download your license file for offline activation.
Activation
1 license up to 3 computers
No iLok
We don’t like dongles
No Internet
No connection required to activate
